i-DT61XW
Bộ chỉ thị i-DT61XW do hãng OHAUS sản xuất ủy quyền cho CÔNG TY CỔ PHẦN CÂN ĐIỆN TỬ THỊNH PHÁT có địa chỉ trụ sở chính tại số 57 Đường Nguyễn Văn Thương, Phường 25, Quận Bình Thạnh, TP.Hồ Chí Minh nhập khẩu và phân phối, quí khách có nhu cầu xin liên hệ điện thoại (028) 62.888.666 di dộng có zalo 0915.999.111 hoặc 0908.444.000 website www.ohausvietnam.com
|
Model
|
Bộ chỉ thị Ohaus i-DT61XWE
|
|
Độ phân giải
|
1/30.000
|
|
Hiển thị
|
Màn hình LCD, đèn nền backlight độ tương phản cao
|
|
Kết nối
|
8 load cell 350 or 3,3 VDC, 2 mv/v hoặc 3 mv/v
|
|
Giao tiếp
|
RS 232, USB
|
|
Kích thước
|
(290 x 235 x 80) mm
|
|
Tiêu chuẩn
|
CE, ĐLVN, OIML |
|
Nhà sản xuất
|
OHAUS USA |
|
Nhập khẩu
|
TPS |
|
Nguồn
|
220-240VAC kèm Adaptor 12V/1A |
Giá:
Liên hệ
Thông tin chi tiết

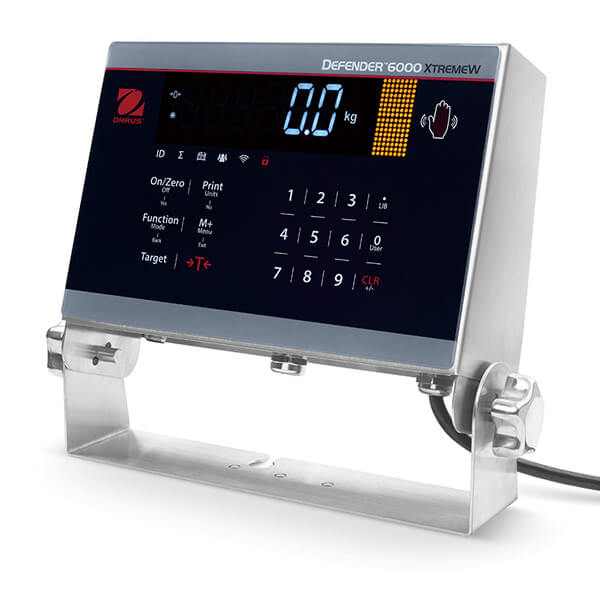

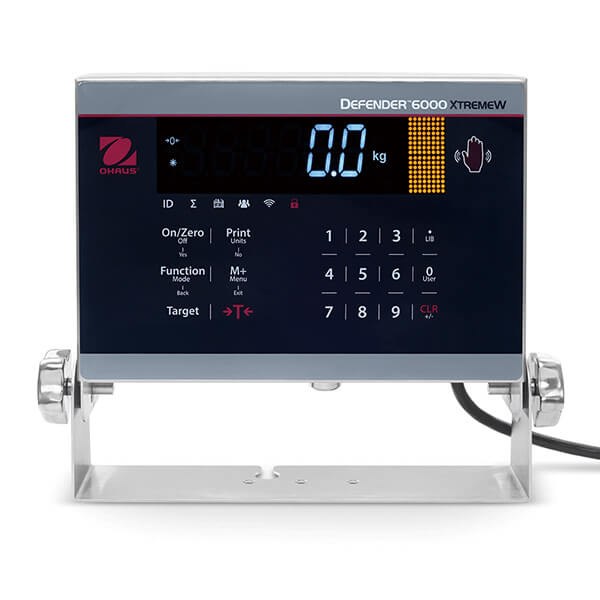

The Defender 6000 Series Extreme Washdown Indicator is specifically designed for food, chemical and pharmaceutical applications including production, processing, and packaging. Defender 6000 handles the most demanding applications with a 316 stainless steel housing equipped with bar matrix check light, knife-proof front panel and EasyConnectTM.
Applications
Weighing, Counting with APW optimization, Percent Weighing, Checkweighing, Checkcounting, Filling, Dynamic Weighing/Display Hold
Display
6-digit, 7-segment white LED, 20 mm high digits
Operation
100-240 VAC / 50/60 Hz universal power supply, hardwired
Communication
Easy access communication ports including RS232 and USB Host, second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog output (available as accessories); GLP/GMP data output with real-time clock
Construction
IP68/IP69K 316 stainless steel housing indicator and mounting bracket, knife-resistant front panel
Design Features
3-color check light bar, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, low battery indicator, auto shut-off, auto tare
SPECIFICATIONS i-DT61XWE
| Resolution |
75,000 |
| Resolution (Certified) |
6,000 |
| Battery Life |
Not Applicable |
| Outputs |
4 - 20mA; 0–10V; 2 In/4 Out digital I/O |
| Second Scale Input |
Not Applicable |
| Protection Rating |
IP69k; IP68 |
| Communication |
Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232; USB Host; WiFi/Bluetooth (available as an accessory) |
| Dimensions (HxLxW) |
11.4 in x 9.3 in x 3.1 in (290 mm x 235 mm x 80 mm) (LxHxW) |
| Display |
7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED |
| In-use cover |
Available as an Accessory |
| Legal for Trade |
EC Type Approvable; OIML |
| Net Weight |
7 lb (3.2 kg) |
| Power |
Rechargeable Battery (Not Included); AC Power (Included) |
| Protection Rating |
Not Applicable |
| Stabilization Time |
2 s |
| Tare Range |
To capacity by subtraction |
| Units of Measurement |
Gram; Kilogram; Pound; Ounce; Pound:Ounce |
| Working Environment |
14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
Tài liệu kỹ thuật
