AX223
Cân phân tích kỹ thuật AX223 do hãng OHAUS sản xuất ủy quyền cho CÔNG TY CỔ PHẦN CÂN ĐIỆN TỬ THỊNH PHÁT có địa chỉ trụ sở chính tại số 57 Đường Nguyễn Văn Thương, Phường 25, Quận Bình Thạnh, TP.Hồ Chí Minh nhập khẩu và phân phối, quí khách có nhu cầu xin liên hệ điện thoại (028) 62.888.666 di dộng có zalo 0915.999.111 hoặc 0908.444.000 website www.ohausvietnam.com
Model
|
Cân kỹ thuật AX223 |
Mức cân
|
220 g
|
Độ đọc
|
0.001 g
|
Kích thước đĩa
|
Ø 130 mm
|
Kích thước cân
|
(354 x 230 x 340) mm.
|
Hiển thị
|
Màn hình màu cảm ứng đồ họa (Full-Color Touchscreen)
|
Giao tiếp
|
RS232 và USB
|
Nhập khẩu
|
Thư ủy quyền nhập khẩu và phân phối |
Nguồn
|
220-240VAC kèm sạc Adapter 12v/1A |
Sản xuất
|
OHAUS USA
|
Giá:
Liên hệ
Thông tin chi tiết

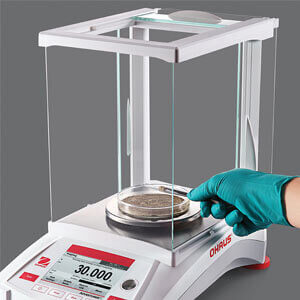

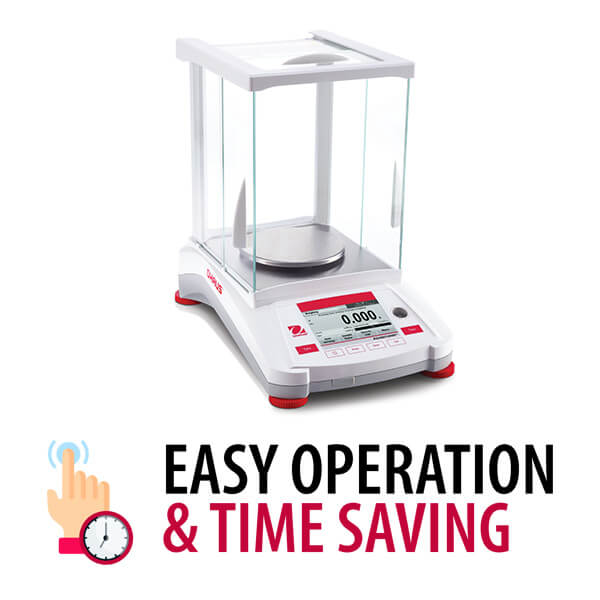

ADVENTURER™ PRECISION
Intuitive Balances Designed for Routine Weighing
OVERVIEW
Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three-level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing.
Display
4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
Operation
AC Adapter (Included)
Communication
RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
Construction
Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, full housing in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages.
SPECIFICATIONS
Model
|
AX223
|
Maximum Capacity
|
220 g
|
Readability
|
0.001 g
|
Pan Size
|
5.1 in (130 mm)
|
Internal Calibration
|
AutoCal™ - Automatic
|
Draftshield
|
Included
|
Auxiliary Display Model
|
Available as an Accessory |
Battery Life
|
Not applicable |
Communication
|
USB; RS232 (Included); USB Host TPS OEM
|
Dimensions
|
13.93 in x 13.39 in x 9.05 in (354 mm x 340 mm x 230 mm) (LxHxW) |
Display
|
High resolution full colour VGA touch display |
In-Use Cover
|
Included |
Legal for Trade
|
No |
Linearity ±
|
0.002 g |
Minimum Weight
|
(USP, 0.1%, typical) 2 g
|
Net Weight
|
12.8 lb (5.8 kg) |
Pan Construction
|
Stainless Steel |
Power
|
AC Adapter (Included) |
Repeatability, typical
|
1 mg |
Stabilization Time
|
2 s |
Tare Range
|
To capacity by subtraction |
Units of Measurement
|
Ounce Troy; Pennyweight; Momme; Gram; Kilogram; Grain; Tola; Tical; Mesghal; Carat; Ounce; Custom |
Working Environment
|
50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing) |
